Boeing 737 Pressurization Panel Displays
Pressurization Panel displays for home-built flight simulator.

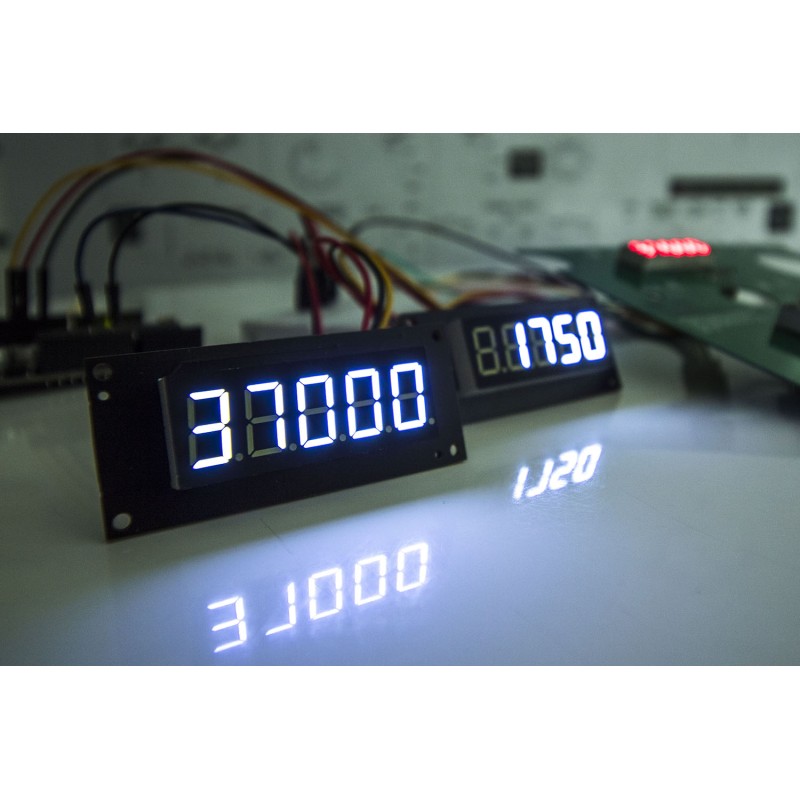

The Boeing 737 Forward Overhead Panel displays to the pilots relevant electrical and pressurization information on several displays. This datasheet describes how to setup and use the circuit boards that replicate the Pressurization Panel displays for home-built flight simulator users.
The LED displays are driven by the MAX7219 LED driver chip. Required power is 5V DC. The MAX7219 uses SPI communication, which is supported by many interface cards/microcontrollers and single board computers, such as Arduino, Arduino compatible, rPi and many others. The display boards are also fully compatible with Mobiflight.
Please consult datasheet in the attachments tab for more information.
