2-Position Magnetically Held Toggle Switch

€65.00
No tax

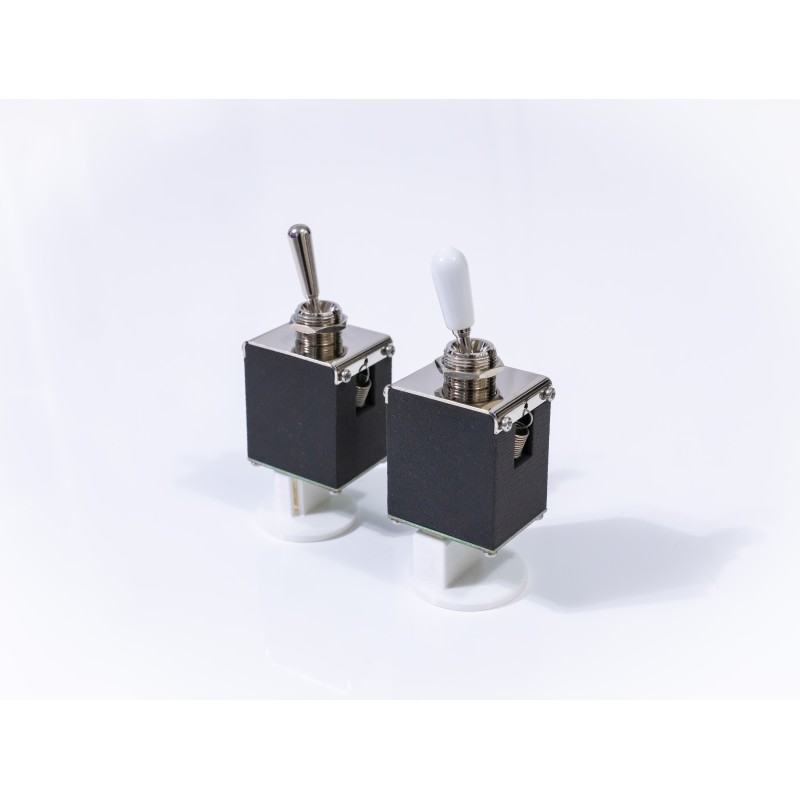

Two-Position Magnetically Held Solenoid Toggle Switch

Quantity

Two-position switch with Single Pole Double Throw (SPDT) contacts. Switch function is ON-(ON), where ON is a maintained position and (ON) is a momentary (spring-loaded) position. The momentary position is on the keyway side of the switch.


The switch has a special function to hold the momentary position in place with the use of a small holding solenoid, that is powered by an LDO with an enable/shutdown function and the circuit is protected against inductor flyback (a flyback diode is incorporated).

If you need to buy a switch cap, please open the related product below.

Opencockpits IOCards users: It has been brought to our attention that this switch might not be compatible with Opencockpits IOCards, as both the solenoid circuit and the switch circuit of the toggle switch share the same ground.

5 Items

Download

2POS SLND SW datasheet

Reference document for specs and setup

Download (615.16KB)

Setup configuration example

Setup example with Mobiflight and PMDG

Download (1.54MB)

SLND SW Prosim and Pokeys setup

Prosim and Pokeys Setup instructions

Download (1.78MB)
